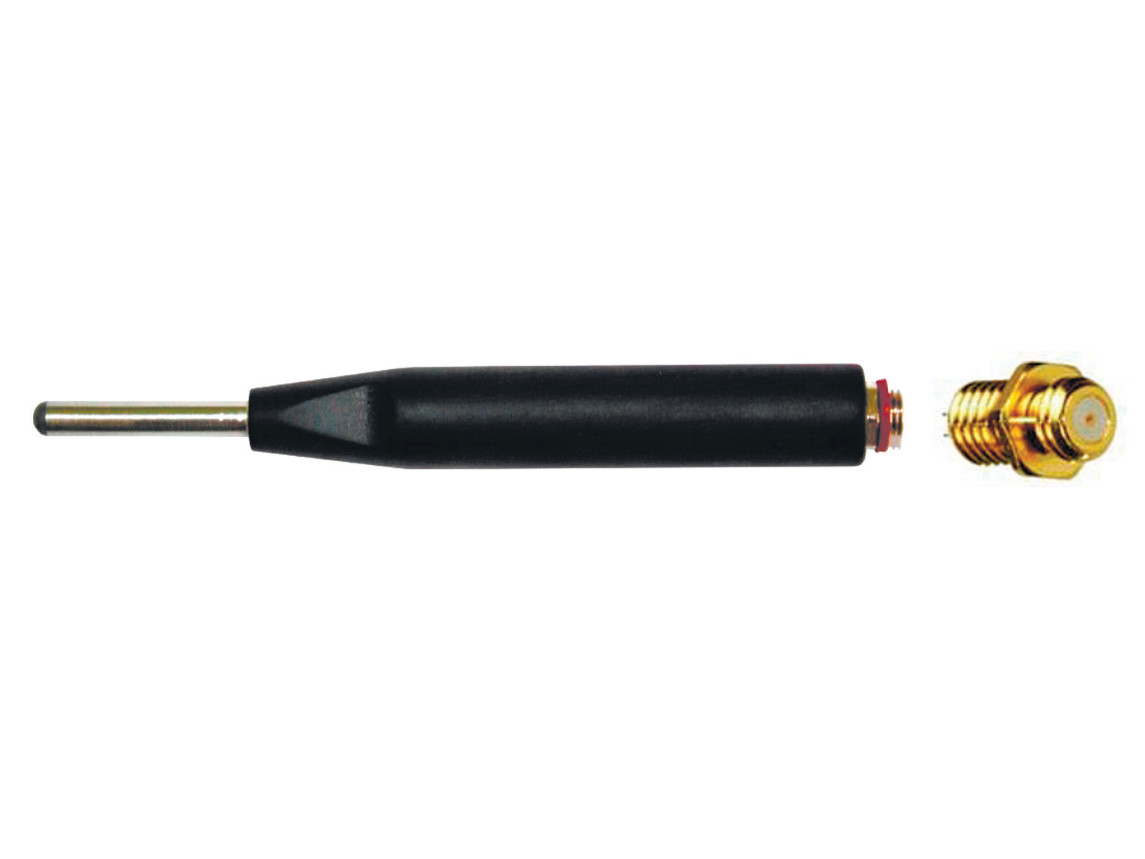

Sensing element of eddy current probe coincides with the handle axis

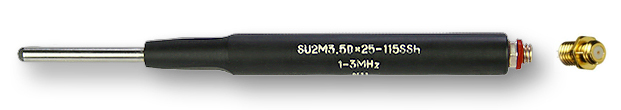

Straight shaft ECP:
- typical absolute single-coil probe built according to the “Single coil” scheme
- designed for testing of complex-shape parts with open access
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip Ø ‘D’, mm |
Length, mm |
Centre Frequency |
Connector |
|
|
SU200K3Dx25-105 S |
3 |
105 |
200 kHz |
Microdot
|
Fe/NFe |
|
SU200K4.5Dx25-105 S |
4.5 |
105 |
200 kHz |
Fe/NFe |
|
|
SU500K3Dx25-105 S |
3 |
105 |
500 kHz |
Fe/NFe |
|
|
SU500K4.5Dx25-105 S |
4.5 |
105 |
500 kHz |
Fe/NFe |
|
|
SU2М2.5Dx25-105 S |
2.5 |
105 |
2 MHz |
NFe |
|
|
SU2М3Dx25-105 S |
3 |
105 |
2 MHz |
NFe |
|
|
SU6М2.5Dx25-105 S |
2.5 |
105 |
6 MHz |
NFe |
|
SU |
200K |
3D |
x |
25 |
- |
105 |
S(Sh) |
|
1 |
2 |
3 |
|
4 |
|
5 |
6 |
1. SU – surface probe for surface flaws detection.
2. Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
3. Probe tip diameter, mm
4. Shaft size, mm
5. Total probe length, mm. Standard length - of 105 mm (4.1") can be changed upon request.
6. Probe type designation: “S”. “S” – Single coil probe.
Probes of standard type are manufactured unshielded. In case a shielded probe is required, when making an order, please indicate the letters ”Sh” (Shielded) at the end of a designation code.
