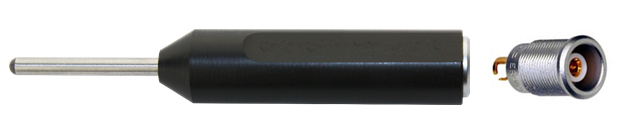

ECP’s sensing element coincides with the handle axis
Straight ECP:
- is an absolute probe built according to the Bridge scheme
- designed for testing of the complex-shape details
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip Ø ‘D’, mm |
Length, mm |
Centre Frequency |
Connector |
Material |
|
SU200K3Dx25-75 B |
3 |
75 |
200 kHz |
Triax Lemo (ERN.0S650.CTA)/ |
Fe/NFe |
|
SU200K4.5Dx25-75 B |
4.5 |
75 |
200 kHz |
Fe/NFe |
|
|
SU500K3Dx25-75 B |
3 |
75 |
500 kHz |
Fe/NFe |
|
|
SU500K4.5Dx25-75 B |
4.5 |
75 |
500 kHz |
Fe/NFe |
|
|
SU2М2.5Dx25-75 B |
2.5 |
75 |
2 MHz |
NFe |
|
|
SU2М3Dx25-75 B |
3 |
75 |
2 MHz |
NFe |
|
|
SU6М2.5Dx25-75 B |
2.5 |
75 |
6 MHz |
NFe |
|
SU |
200K |
3D |
x |
25 |
- |
75 |
B (Sh) |
|
1 |
2 |
3 |
|
4 |
|
5 |
6 |
1. SU – surface probe for surface flaws detection.
2. Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
3. Probe tip diameter, mm
4. Shaft size, mm
5. Probe length, mm. Standard length of 75 mm (3") can be changed upon request.
6. Probe type designation: “B”. “B” – Bridge type probe.
Probes of standard type are manufactured unshielded. In case a shielded probe is required, when making an order, please indicate the letters ”Sh” (Shielded) at the end of a designation code.
