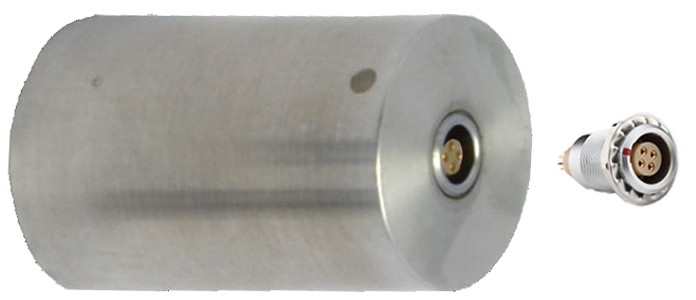

Surface ECP for surface and sub-surface defects detection in aluminum and titanium alloys:
- is an absolute transducer built according to the Reflection scheme
- is designed for testing of plane objects or parts with large-radius curvature
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
The probe sensing element is located form the butt-end relative to the probe X-axis.
|
Designation |
Tip Ø 'D', mm |
Length, mm |
Centre frequency |
Connector |
Material |
Defects under paint coating |
Subsurface defects |
Protective housing |
|
SS1.5M05DA0 |
5 |
35 |
1,5 MHz |
Lemo 04 |
Fe/NFe |
up to 0.3 mm |
– |
– |
|
SS650K06DA0 |
6 |
35 |
650 kHz |
Fe/NFe |
up to 0.5 mm |
– |
– |
|
|
SS400K07DA0 |
7 |
35 |
400 kHz |
Fe/NFe |
up to 0.5 mm |
– |
– |
|
|
SS400K08DA0 |
8 |
35 |
400 kHz |
Fe/NFe |
up 0.5 mm |
– |
– |
|
|
SS340K09DA0 |
9 |
35 |
340 kHz |
Fe/NFe |
up to 1 mm |
– |
+ |
|
|
SS170K13DA0 |
13 |
35 |
170 kHz |
Fe/NFe |
up to 7 mm |
+ |
+ |
|
|
SS50K15DA0 |
15 |
50 |
50 kHz |
Fe/NFe |
up to 9 mm |
+ |
– |
|
|
SS25K33DA0 |
33 |
50 |
25 kHz |
Fe/NFe |
up to 12 mm |
+ |
– |
|
SS |
1.5M |
05D |
A |
X |
|
1 |
2 |
3 |
4 |
5 |
1. SS – (sub surface) probe for surface and sub-surface defects detection.
2. Probe frequency:
“HZ” designation for Hz range; “К” designation for kHz range; “М” designation for MHz range.
3. ECP tip diameter, mm.
4. Designation of ECP type "А". “А” – Absolute.
5. ECP modification number.
