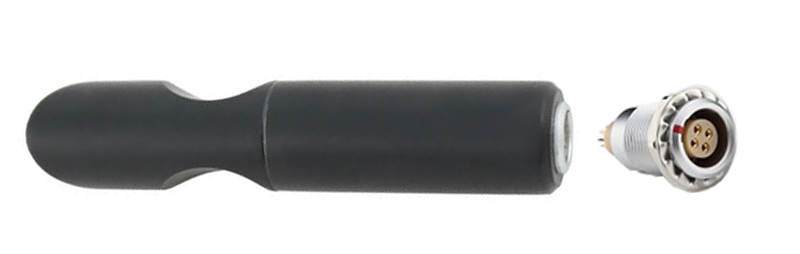

Straight Weld Testing ECP:
- is an absolute transducer built according to the “Bridge” scheme
- designed for welds testing in compliance with the ISO 17643 requirements
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip Ø 'D', in/mm |
Length, in/mm |
Frequency, kHz |
Connector |
Material |
Defects under paint coating |
Subsurface defects |
|
WLD100K3×.2DA0 |
.2/5.1 |
3/75 |
100-1000 |
Lemo 04 |
Fe |
up to 0.3 mm |
+ |
|
WLD100K3×.35DA0 |
.35/8.9 |
3/75 |
100-1000 |
Fe |
up to 0.5 mm |
+ |
|
|
WLD100K3×.43DA0 |
.43/10.9 |
3/75 |
100-1000 |
Fe |
up to 0.5 mm |
+ |
|
|
WLD100K3×.63DA0 |
.63/16 |
3/75 |
100-600 |
Fe |
up to 1 mm |
+ |
|
|
WLD100K3×1DA0 |
1/25.4 |
3/75 |
100-600 |
Fe |
up to 1.5 mm |
+ |
|
WLD |
100K |
3 |
× |
.63D |
A |
0 |
|
1 |
2 |
3 |
|
4 |
5 |
6 |
-
WLD – weld probe for weld joints testing.
-
Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
-
Probe length, in. Standard length 3" (75 mm), by default the size is specified in inches. Can be changed upon request.
-
The probe tip diameter, inches.
-
Probe type designation "А". “А” – Absolute.
-
Probe modification number.
