Straight surface pencil probe (Reflection type)
Straight surface pencil probe (Reflection type)

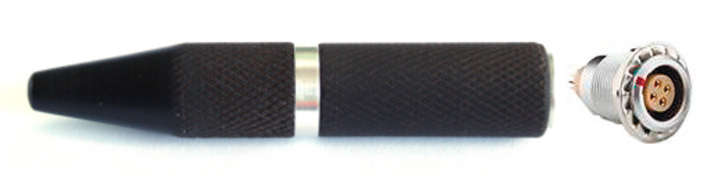

Straight pencil type ECP:
- is an absolute probe built according to the “Reflection” scheme
- designed for testing of complex-shape parts with open access
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
Sensing element of eddy current probe coincides with the handle axis
|
Designation |
Tip Ø ‘D’, |
Length, |
Frequency, |
Connector |
Material |
|
SU450K05DA0 |
5 / .2 |
70 / 2.75 |
400 - 600 |
Lemo 04
|
Fe/NFe |
|
SU |
450K |
05D |
A |
X |
|
1 |
2 |
3 |
4 |
5 |
1. SU – surface probe for surface flaws detection.
2. Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
3. Probe tip diameter, mm
4. Probe type designation "А". “А” – Absolute.
5. Probe modification number.
