Right Angle (L-shaped) ECP:
- is an absolute probe built according to the “Reflection” scheme
- designed for testing of spots with complicated access or parts having protruding elements
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.

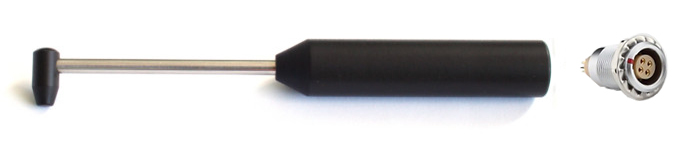

Sensing element of eddy current probe is placed at the angle of 90˚ to the handle axis.
|
Designation |
Tip Ø ‘D’, mm / inch |
Drop length, mm / inch |
Length, mm / inch |
Frequency, kHz |
Connector |
Material |
|
SU450K5A5Dx8-130 A0 |
5 / .2 |
8 / .3 |
130 / 5 |
400 - 600 |
Lemo 04 |
Fe/NFe |
|
SU |
450K |
5A |
5D |
x |
8 |
- |
130 |
A |
X |
|
1 |
2 |
3 |
4 |
|
5 |
|
6 |
7 |
8 |
1. SU – surface probe for surface flaws detection.
2. Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
3. Drop angle of a sensing element to the probe axis “5А” is 90°.
4. Probe tip diameter, mm.
5. Drop length, mm.
6. Probe length, mm. Standard length of 130 mm (5”) can be changed upon request.
7. Probe type designation "А". “А” – Absolute.
8. Probe modification number.
