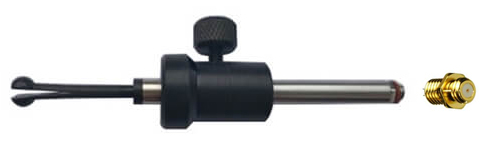

Manual Rotating ECP with Split Tip for Holes Testing:
- typical absolute single-coil probe built according to the “Single coil” scheme the sensing element of which is built into the split plastic case
- designed for manual testing of holes with a specified diameter range
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip Ø ‘D’, mm |
Working length "WL", mm |
Length, mm |
Frequency |
Connector |
Material |
|
ROM3,1-3,6×85/105SS |
3,1-3,6 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Microdot |
Fe/NFe |
|
ROM3,6-4,1×85/105SS |
3,6-4,1 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM4,1-4,6×85/105SS |
4.1-4.6 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM4,6-5.1×85/105SS |
4.6-5.1 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM5,1-5,6×85/105SS |
5.1-5.6 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM5,6-6,1×85/105SS |
5.6-6.1 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM6.1-6.5×85/105SS |
6.1-6.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM6.5-7.5×85/105SS |
6.5-7.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM7.5-8.5×85/105SS |
7.5-8.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM8.5-9.5×85/105SS |
8.5-9.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM9.5-10.5×85/105SS |
9.5-10.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM10.5-11.5×85/105SS |
10.5-11.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM11.5-12.5×85/105SS |
11.5-12.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM12.5-13.5×85/105SS |
12.5-13.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM13.5-14.5×85/105SS |
13.5-14.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM14.5-15.5×85/105SS |
14.5-15.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM15.5-16.5×85/105SS |
15.5-16.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM16.5-17.5×85/105SS |
16.5-17.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM17.5-18.5×85/105SS |
17.5-18.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM18.5-19.5×85/105SS |
18.5-19.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM19.5-20.5×85/105SS |
19.5-20.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM20.5-21.5×85/105SS |
20.5-21.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM21.5-22.5×85/105SS |
21.5-22.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM22.5-23.5×85/105SS |
22.5-23.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM23.5-24.5×85/105SS |
23.5-24.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
|
ROM24.5-25.5×85/105SS |
24.5-25.5 |
35/51 |
85/105 |
200 kHz/500 kHz/ 2 MHz |
Fe/NFe |
|
ROM |
3.1-3.6 |
x |
85/105 |
SS (Sh) |
|
1 |
2 |
|
3 |
4 |
1. ROM – rotary manual probe for bolt holes testing.
2. Range of tested hole diameters, mm.
3. Probe length, mm, is chosen based on the required working length(“WL”).
4. Probe type designation: “SS”
“S” (Split) – Split tip delrin housing, “S”(Single)
Probes of standard type are manufactured unshielded. In case a shielded probe is required, when making an order, please indicate the letters ”Sh” (Shielded) at the end of a designation code. Please specify the required center operating frequency (200 kHz, 500 kHz or 2 MHz).
