L-Shaped Probe for sub-surface flaws detection in the second layer, through the first layer with up to 1.5 mm thickness (e.g., testing of load-bearing elements under aircraft skin) (Reflection type)
L-Shaped Probe for sub-surface flaws detection in the second layer, through the first layer with up to 1.5 mm thickness (e.g., testing of load-bearing elements under aircraft skin) (Reflection type)

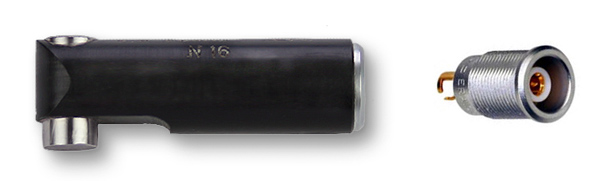

Right Angle (L-shaped) ECP for Subsurface Flaws Detection in the Second Layer through the First Layer with Up To 1.5 mm Thickness:
- is an absolute probe built according to the “Reflection” scheme
- designed for testing of load-bearing elements under an aircraft skin
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Outer diameter, mm/inch |
Drop length, mm |
Length, mm/inch |
Frequency |
Connector |
Material |
Detected flaws |
|
SSP3K5A7.5Dx3-37ASh |
7.5/.3 |
3/.12 |
37/1.5 |
1-25 kHz |
Triax Lemo/Fischer |
NFe |
in aluminum through skin with up to 1.5 mm thickness |
|
SSP3K5A7.5Dx6.4-37ASh |
7.5/.3 |
6.4/.25 |
37/1.5 |
1-25 kHz |
|||
|
SSP3K5A7.5Dx12.5-37ASh |
7.5/.3 |
12.5/.5 |
37/1.5 |
1-25 kHz |
|
SSP |
3K |
5A |
7.5D |
x |
3 |
- |
37 |
A |
(Sh) |
|
1 |
2 |
3 |
4 |
|
5 |
|
6 |
7 |
8 |
-
SSP – sub-surface probe for subsurface flaws detection.
-
Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
-
Drop angle of a sensing element to the probe axis “5А” is 90º.
-
Probe tip diameter, mm
-
Drop length, mm
-
Total probe length, mm.
-
Probe type designation: “А”. А – Absolute.
-
Sh – Shielded sensing element.
