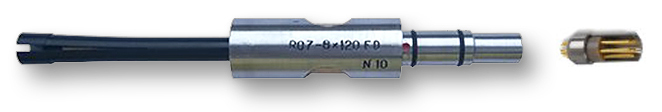

Dynamic rotating ECP with flexible tip, for holes testing:
- typical differential probe built according to the “Reflection” scheme, the sensing element of which is built into the split plastic case
- designed for testing of holes with a specified diameter range
- applied together with eddy current rotary scanners SVR-04/SVR-05 (OKOndt Group)
- compatible with the rotary scanners Mini Mite (OLYMPUS), Mini Drive (GE) and others
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip Ø ‘D’, mm |
Working length (WL), mm |
Length, mm |
Frequency |
Connector |
Material |
|
RO3.1-3.6×100 FD |
3.1-3.6 |
40 |
100 |
200 kHz -3 MHz |
4-pin Fischer connector (to Hocking, GE, Rohmann and Forester drive units, etc.) |
Fe/NFe |
|
RO3.6-4.1×100 FD |
3.6-4.1 |
40 |
100 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO4.1-4.6×100 FD |
4.1-4.6 |
40 |
100 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO4.6-5.1×105 FD |
4.6-5.1 |
40 |
105 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO5.1-5.6×105 FD |
5.1-5.6 |
45 |
105 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO5.6-6.1×105 FD |
5.6-6.1 |
45 |
105 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO6.1-6.5×105 FD |
6.1-6.5 |
45 |
105 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO6.5-7.5×110 FD |
6.5-7.5 |
45 |
110 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO7.5-8.5×120 FD |
7.5-8.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO8.5-9.5×120 FD |
8.5-9.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO9.5-10.5×120 FD |
9.5-10.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO10.5-11.5×120 FD |
10.5-11.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO11.5-12.5×120 FD |
11.5-12.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO12.5-13.5×120 FD |
12.5-13.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO13.5-14.5×120 FD |
13.5-14.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO14.5-15.5×120 FD |
14.5-15.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO15.5-16.5×120 FD |
15.5-16.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO16.5-17.5×120 FD |
16.5-17.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO17.5-18.5×120 FD |
17.5-18.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO18.5-19.5×120 FD |
18.5-19.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO19.5-20.5×120 FD |
19.5-20.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO20.5-21.5×120 FD |
20.5-21.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO21.5-22.5×120 FD |
21.5-22.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO22.5-23.5×120 FD |
22.5-23.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO23.5-24.5×120 FD |
23.5-24.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
|
RO24.5-25.5×120 FD |
24.5-25.5 |
45 |
120 |
200 kHz -3 MHz |
Fe/NFe |
|
RO |
3.1-3.6 |
x |
85 |
FD (Sh) |
|
1 |
2 |
|
3 |
4 |
1. RO – dynamic rotating probe for bolt holes testing.
2. Range of hole size, mm.
3. Probe length, mm. Standard length of 45 mm (1,8") can be changed upon request. To be chosen based on the required working length (“WL”).
4. Probe type designation: “FD”
“F” (Flexible) – Flexible tip delrin housing, “D”(Differential).
