Encircling probe for testing the cylindrical objects made of non-magnetic materials (Reflection type)
Encircling probe for testing the cylindrical objects made of non-magnetic materials (Reflection type)

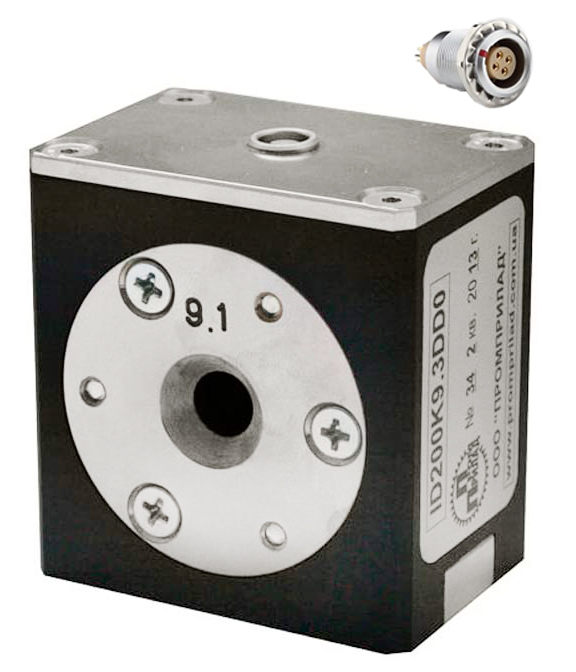

Encircling ECP for testing the cylindrical objects of non-magnetic materials:
- is an differential probe built according to the Reflection scheme
- designed for testing of extended objects (pipes, rods, wires)
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Internal diameter, mm/inch |
Centre frequency, kHz |
Center frequency range, kHz |
Connector |
Material |
|
ID250K9.3DD0 |
from 3 to 180 / from .12 to 7 |
15 |
2-60 |
Lemo 04 |
NFe |
|
50 |
10-250 |
||||
|
250 |
50-500 |
||||
|
600 |
200-1200 |
|
ID |
250K |
9.3D |
D |
0 |
|
1 |
2 |
3 |
4 |
5 |
-
1. ID – round encircling probe for surface flaws detection.
-
Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
-
Through hole diameter, mm.
-
Probe type designation: “D”. D – Differential.
-
Probe modification number.
