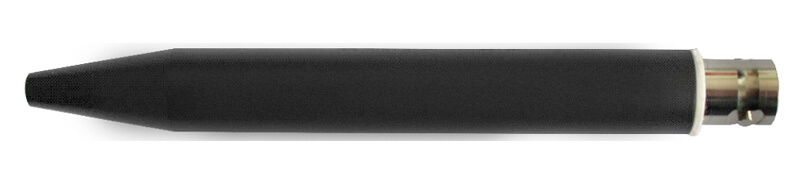

ECP for coating thickness evaluation (Single coil type)
ECP for coating thickness evaluation (Single coil type)
ECP for coating thickness evaluation:
- is a typical absolute probe (single coil), built according to the “Single coil” scheme
- is designed to evaluate the thickness of the paintwork coating applied to ferromagnetic products
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip diameter ‘D’, |
ECP length, |
Center frequency |
Connector |
Maximum coating thickness, |
Tested material |
|
SU100K05D-85S |
5 |
85 |
100 kHz |
BNC |
2 |
Fe |
|
SU |
100K |
05D |
85 |
S |
|
1 |
2 |
3 |
4 |
5 |
1. SU – (surface probe) probe for paintwork coating thickness evaluation.
2. ECP frequency:
«HZ» designation for «Hz» range; «K» designation for «kHz» range; «М» designation for «MHz» range.
3. ECP tip diameter, mm.
4. ECP total length, mm. Standard length 85 mm; can be changed upon request.
5. Designation of ECP type – «S» parametric unshielded (Single).
