Angle Beam Single Element Probe (USA version)

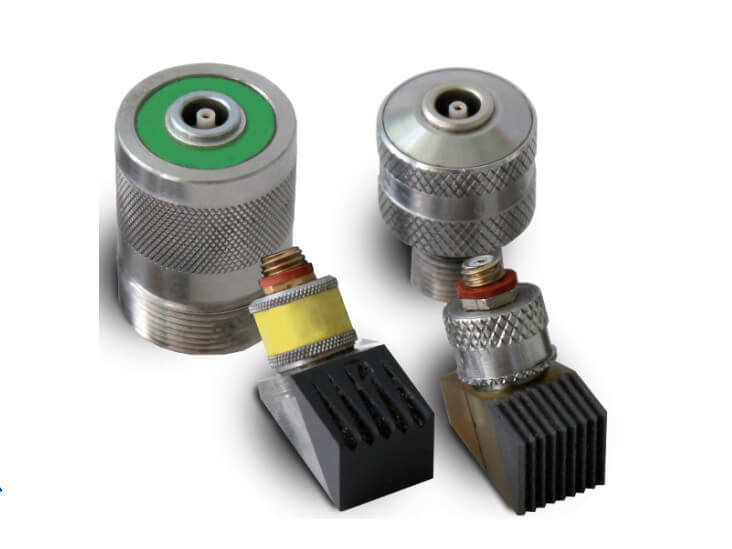

Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™

REQUEST A QUOTE

Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™

Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™

Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™

Transducer dimensions with “microdot” connector:

Element dia.		D		L		E		Thread size
mm	in	mm	in	mm	in	mm	in	Thread size
6	.250	12.0	.450	14.0	.540	8.5	.335	3/8"-32 UNEF
8	.375	16.0	.590	18.0	.690	11.2	.440	1/2"-28 UNEF
10	.500	18.0	.700	18.0	.710	12.0	.460	5/8"-24 UNEF

Transducer dimensions with “lemo00” connector:

Element dia.		D		L		E		Thread size
mm	in	mm	in	mm	in	mm	in	Thread size
6	.250	12.5	.50	25.0	1.0	19.0	.75	3/8"-32 UNEF
8	.375	12.5	.50	25.0	1.0	19.0	.75	1/2"-28 UNEF
10	.500	12.5	.50	25.0	1.0	19.0	.75	5/8"-24 UNEF

General specifications:

Catalog number	Frequency, MHz	Element dia.		Connector type	Connector position
Catalog number	Frequency, MHz	mm	in	Connector type	Connector position
TWS1-.500		12	.500	Microdot/lemo00	Top
TWS2-.250	2.25	6	.250	Microdot/lemo00	Top
TWS2-37		10	.375	Microdot/lemo00	Top
TWS2-.500		12	.500	Microdot/lemo00	Top
TWS5-.250	5.0	6	.250	Microdot/lemo00	Top
TWS5-.375		10	.375	Microdot/lemo00	Top
TWS5-.500		12	.500	Microdot/lemo00	Top
TWS10-.250	10.0	6	.250	Microdot/lemo00	Top
TWS10-.375		10	.375	Microdot/lemo00	Top

* connector type: M • microdot; L • lemo00

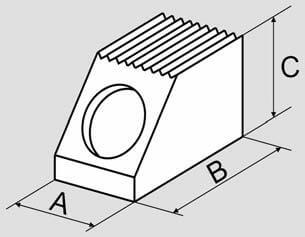

Wedge dimensions:

Catalog number	Element dia.		A		B		C		Refracted angle in steel
Catalog number	mm	in	mm	in	mm	in	mm	in	Refracted angle in steel
WS25-45	6	.250	14.0	.54	19.0	.74	12.0	.48	45
WS25-60			14.0	.54	21.0	.83	14.0	.54	60
WS25-70			14.0	.54	25.0	.98	.14.5	.57	70
WS25-90			14.0	.54	28.5	1.12	16.0	.64	90
WS37-45	8	.375	15.75	.62	21.0	.83	45.0	.55	45
WS37-60			15.75	.62	27.5	1.08	60.0	.64	60
WS37-70			15.75	.62	30.7	1.21	70.0	.70	70
WS37-90			15.75	.62	36.0	1.41	90.0	.72	90
WS50-45	10	.500	19.0	.75	28.0	1.1	14.0	.55	45
WS50-60			19.0	.75	33.0	1.31	16.0	.64	60
WS50-70			19.0	.75	36.0	1.43	18.0	.70	70
WS50-90			19.0	.75	41.0	1.62	18.0	.72	90
